Description
Description
Get optimal performance with Sensenich’s 3 blade propeller designed specifically for Lycoming O-320 to IO-390 powered high speed aircraft such as the Panther aircraft. This propeller is manufactured using an internal pressure, closed mold system to produce a hollow, one piece blade. This process yields very repeatable blades with maximum strength, durability, and low weight. This propeller has the strength and durability to give you thousands of hours of trouble free flying.
This propeller features a co-cured bonded stainless steel leading edge for erosion and FOD protection. The two piece hub is manufactured from aerospace grade aluminum and is shot peened for durability and anodized for corrosion protection.
The Pitch Pin Hub System allows its users to set a broad range of pitches, using the system’s index pins to make adjustments. Simply loosen the hub clamping bolts, insert the desired pitch pin, set the blades against the pin, torque the mounting bolts and go flying! The entire pitch change process takes less than 5 minutes.

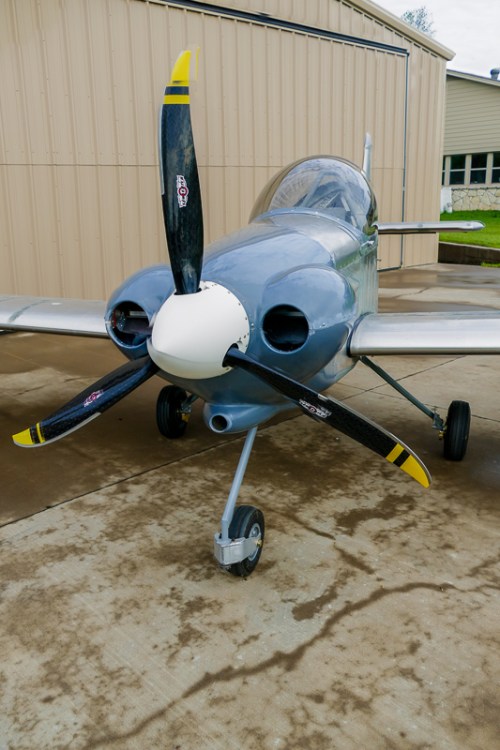

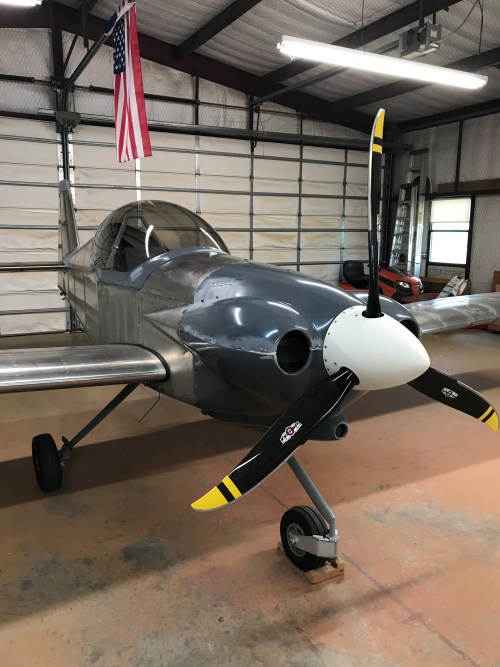

This 3 blade propeller is suitable for use on the Lycoming O-235, O-290, O-320, O-360 and IO-390 and similar engines. We have tested this on the Panther. The blades can be trimmed from the maximum 68″ diameter to 64″ diameter.
Also available is a composite spinner for this propeller to match up to the Panther cowling. This propeller mounts with 3/8″ & 7/16″ & 1/2 bolts only! Please specify bolt size when ordering.
Special Features:
- Internal pressure molded
- Carbon Fiber construction
- Advanced Manufacturing Process
- 3 Blade Tractor
- Pitch Pin Hub System
- Co-cured Metal Leading Edge
- 68″ – 64″ Diameter
- Spinners Available
- 3/8″, 7/16″ & 1/2″ Mount Bolts Available
Specifications:
| MATERIAL | Carbon Fiber |
|---|---|
| ENGINE SUITABILITY | Lycoming O-235, Lycoming O-290, Lycoming O-320, Lycoming O-360 |
| HORSEPOWER | 115 – 220 HP |
| DIAMETER REDUCTION | 1 Inch, 2 Inch, 3 Inch, 4 Inch, None |
