Panther Builders Manual

Navigation: Flap Assembly

Final Assembly

Scroll Prev Top Next More

1.  Up-drill all holes in flap to #30, deburr and dimple if desired.



2.   Rivet flap together using BSC-43 rivets in the top and bottom surfaces, and BSPS-43 rivets on hinge, and BSPS-42 rivets on front face. DO NOT RIVET DRIVE RIB IN PLACE UNTIL FLAP HAS BEEN TRIMMED TO LENGTH.

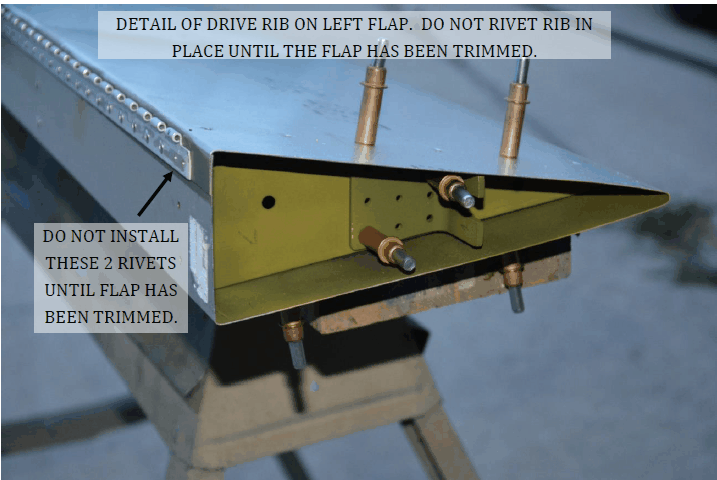

flapfinalassy



3.  Repeat for right side flap.
