Panther Builders Manual

Navigation: Cowling

Lower Cowling Bracket

Scroll Prev Top Next More

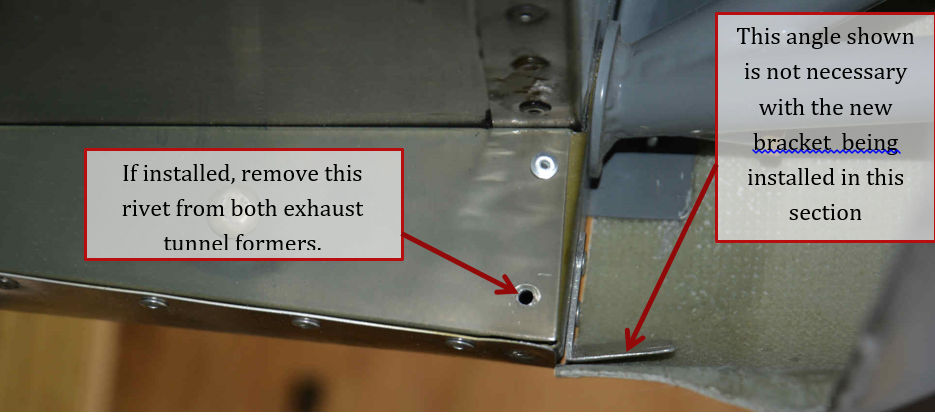

If installed, remove the lower rivet from the exhaust tunnel side fairing on both sides.  Leave the lower cowling in place, but remove the upper cowling.

lowercowl1

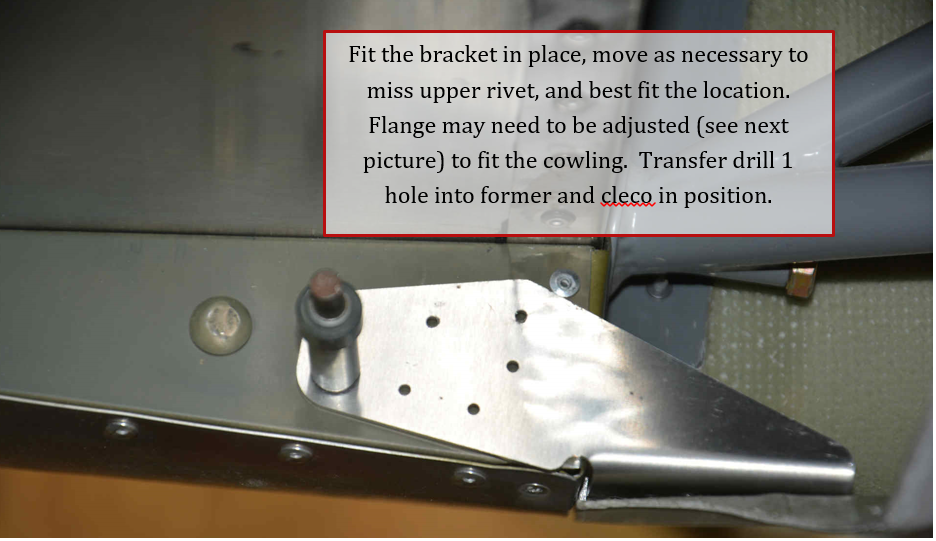

Fit bracket on the tunnel, flange for cowling should point outboard.

lowercowl2

Angle of the bracket flange may need to be adjusted  for proper fit.

lowercowl3

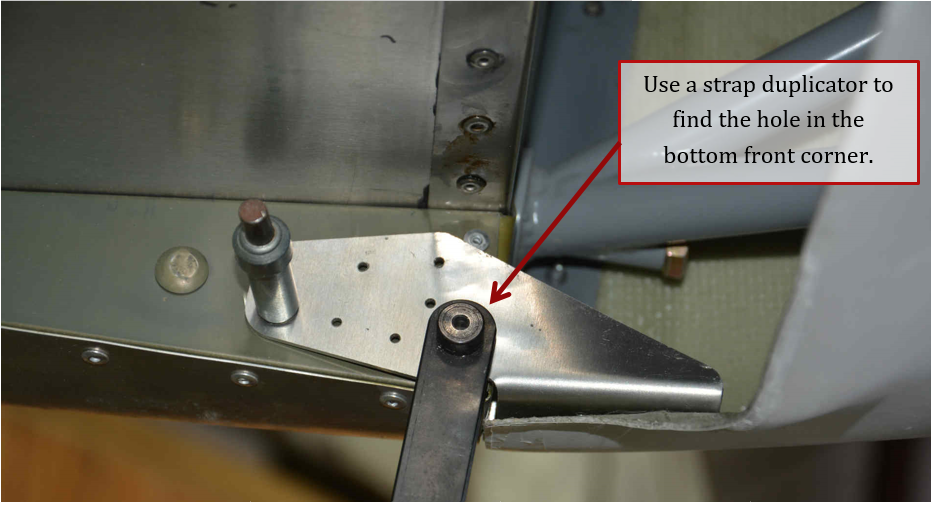

Use a strap hole duplicator to locate and drill the lower hole.

lowercowl4

lowercowl5

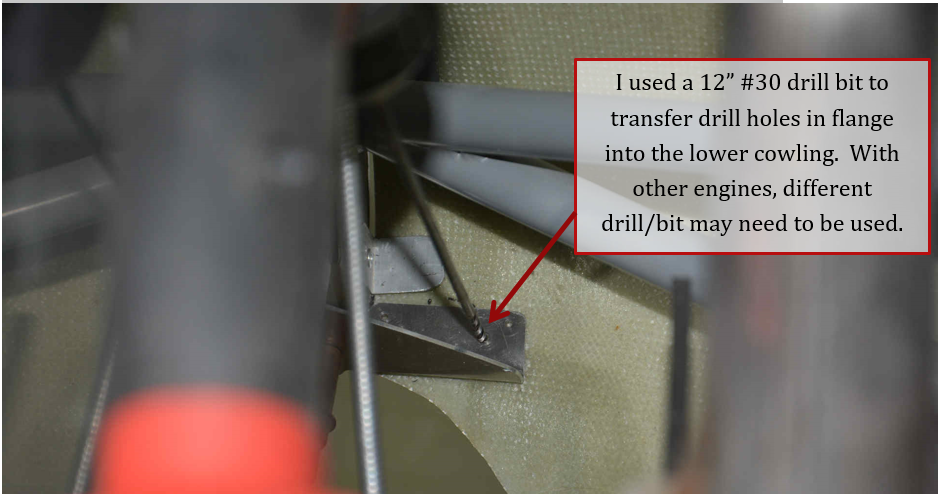

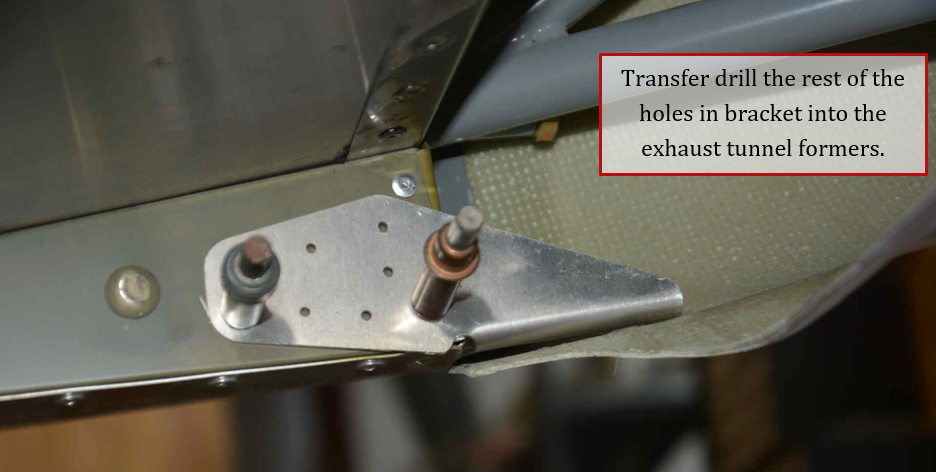

Using a long drill bit, transfer drill the holes in the bracket into the cowling.

lowercowl6

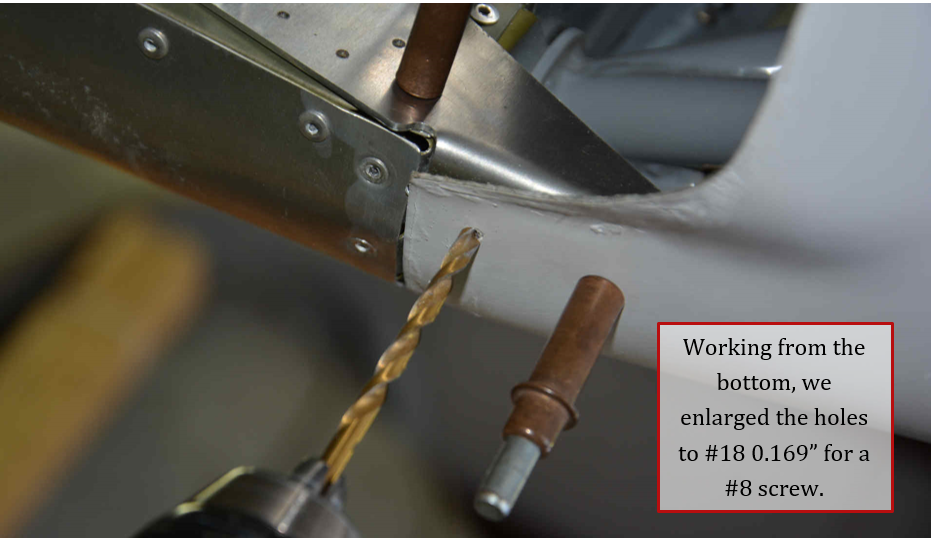

Working from the bottom, enlarge to 0.169” for #8 screws.

lowercowl7

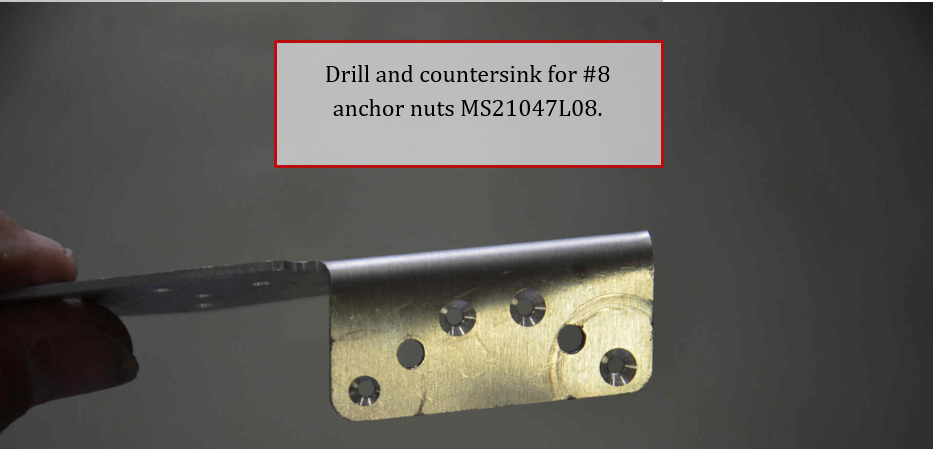

Drill and countersink for the rivets to hold anchor nuts in place.

lowercowl8

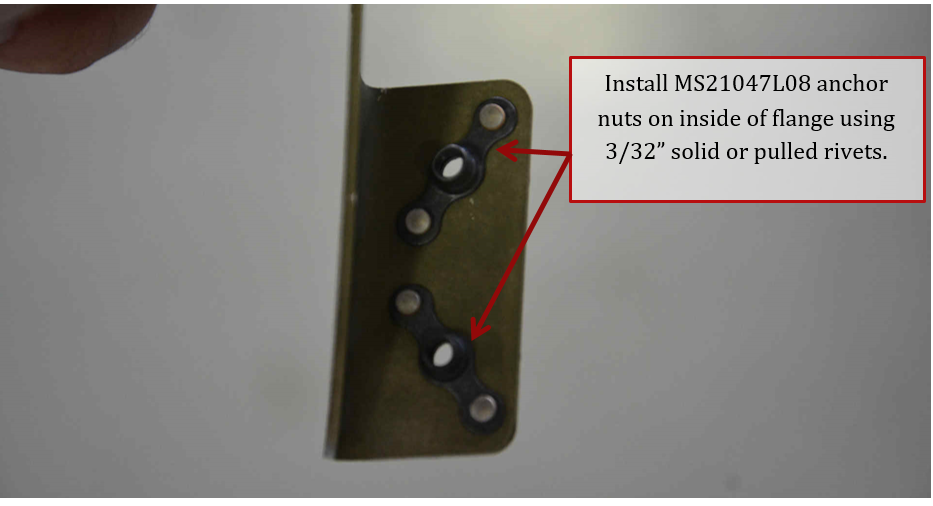

Anchor nuts riveted in place.

lowercowl9

Rivet bracket in place

lowercowl10

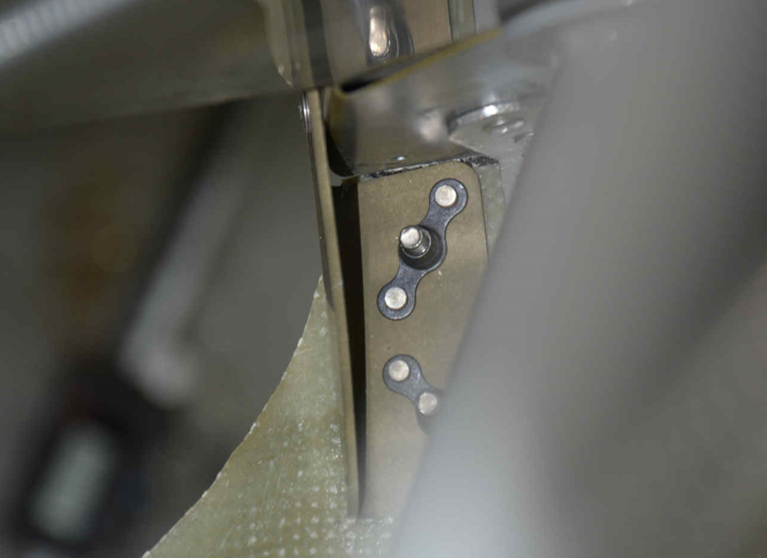

View looking inside of lower cowling, with completed bracket.  Repeat for the other side.

lowercowl11
