Optional: Cutout for step tube

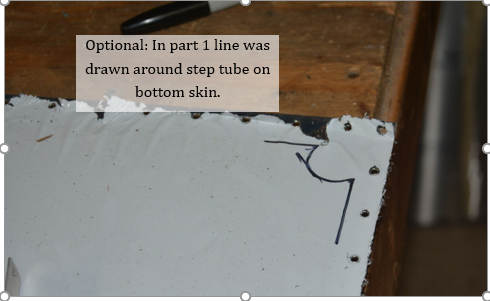

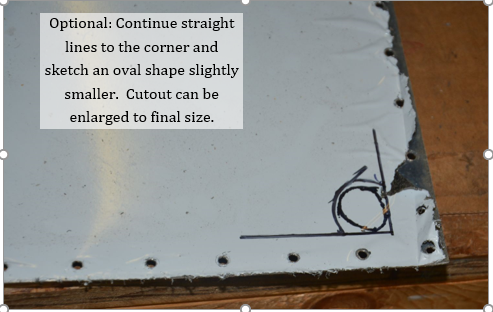

1. With bottom skin removed, continue the lines drawn around the tube in part 1.  Sketch an oval inside of the lines drawn

Bottomskin1

Bottomskin2

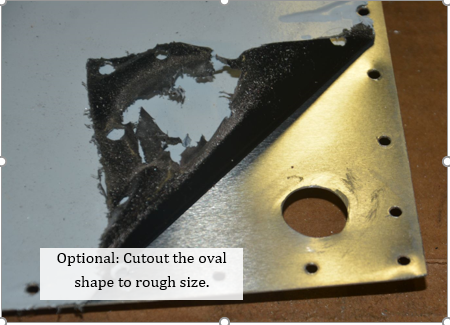

2. Make cutout in skin, hole can be enlarged with a file later

Bottomskin3

3. Using round file, enlarge hole to the size of the tube

Bottomskin4

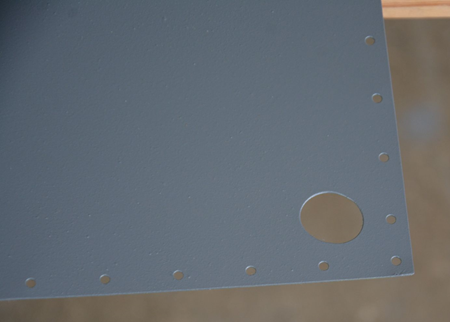

4. View of final hole

Bottomskin5
