Panther Builders Manual

Navigation: Canopy > Canopy Skirt

Prepping the Canopy Skirt

Scroll Prev Top Next More

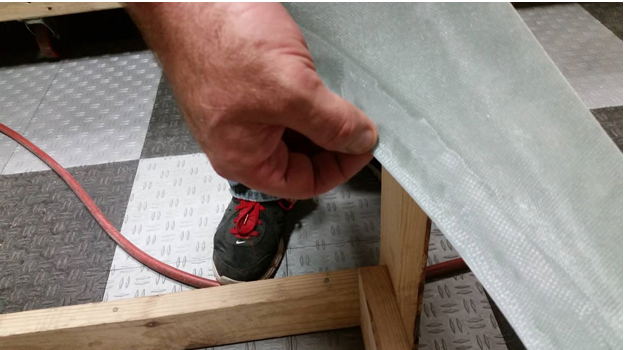

1.First you will need to remove the “mold lip” around the top perimeter of the canopy skirt where the bubble meets the skirt. We use a 90° degree “die grinder” with a 2 inch twist-loc sand paper disc. You can carefully taper the inside so the skirt is thinned at the edge for a nice appearance. Sand the edge with a block as needed for a smooth profile along this edge. The top center will need the most attention due the overlapping layups.

canopy2

canopy3

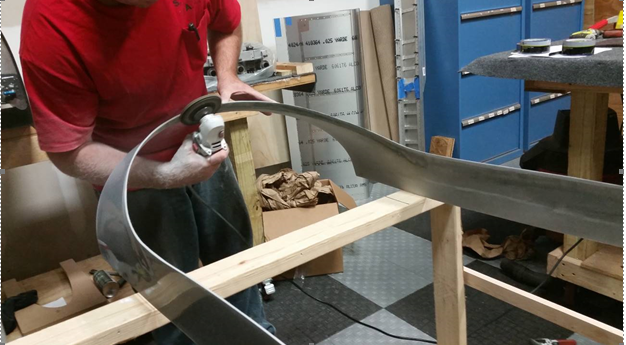

2.Smooth/blend the center aft (top) and forward areas where the layups overlap again we use the 90° die grinder and 2 inch twist loc disc as well as a sanding block as needed.

canopy4

3.Scuff the entire inside of the canopy skirt with a rough piece of sand paper, something like 80 grit.  This will give the tape and adhesive something to stick to.
