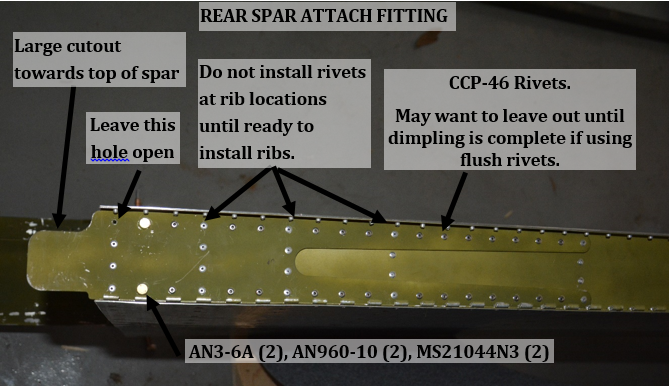

1.The attach fitting has the larger cutout area to the top of the wing. The Right rear spar is shown in the picture below. Updrill to #30 and deburr. If using flush rivets, you may not want to permanently attach fitting until done dimpling. CCP-46 rivets are used to attach fitting to spar. Do not install rivets in the holes that ribs attach to at this time.
