Recommendations for Installation of Pitot Tube

There are many different, and perfectly suitable, methods for installing a pitot system in the Panther.  Pitot tube installation considerations need to be made for the type of instrumentation installed in the aircraft.  The Panther is designed to be a simple airplane.  A simple option for installing the pitot tube is listed below.  This method uses the Aircraft Spruce unheated L-shaped pitot tube #15135.  Estimated cost is around $45 for all of the parts.

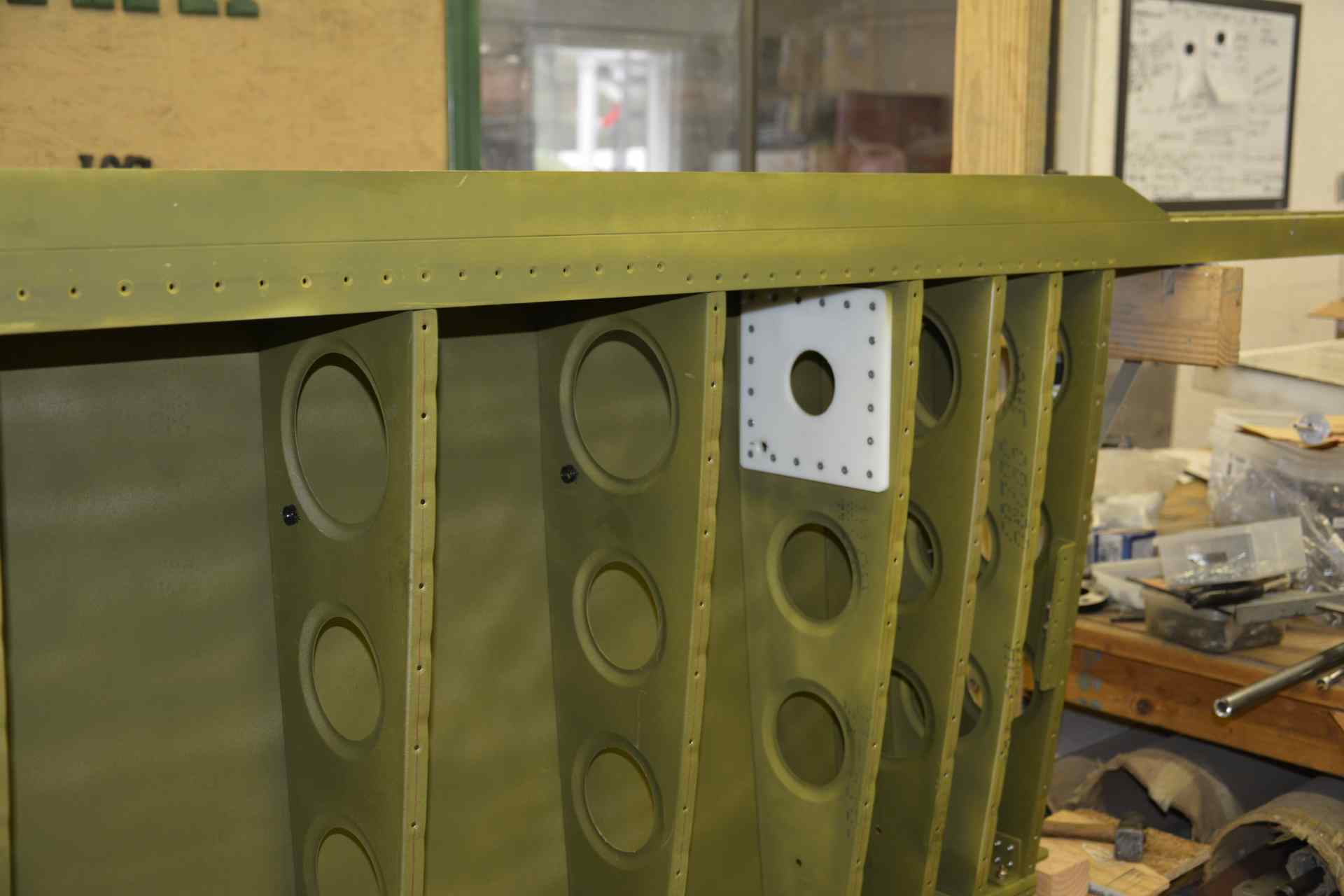

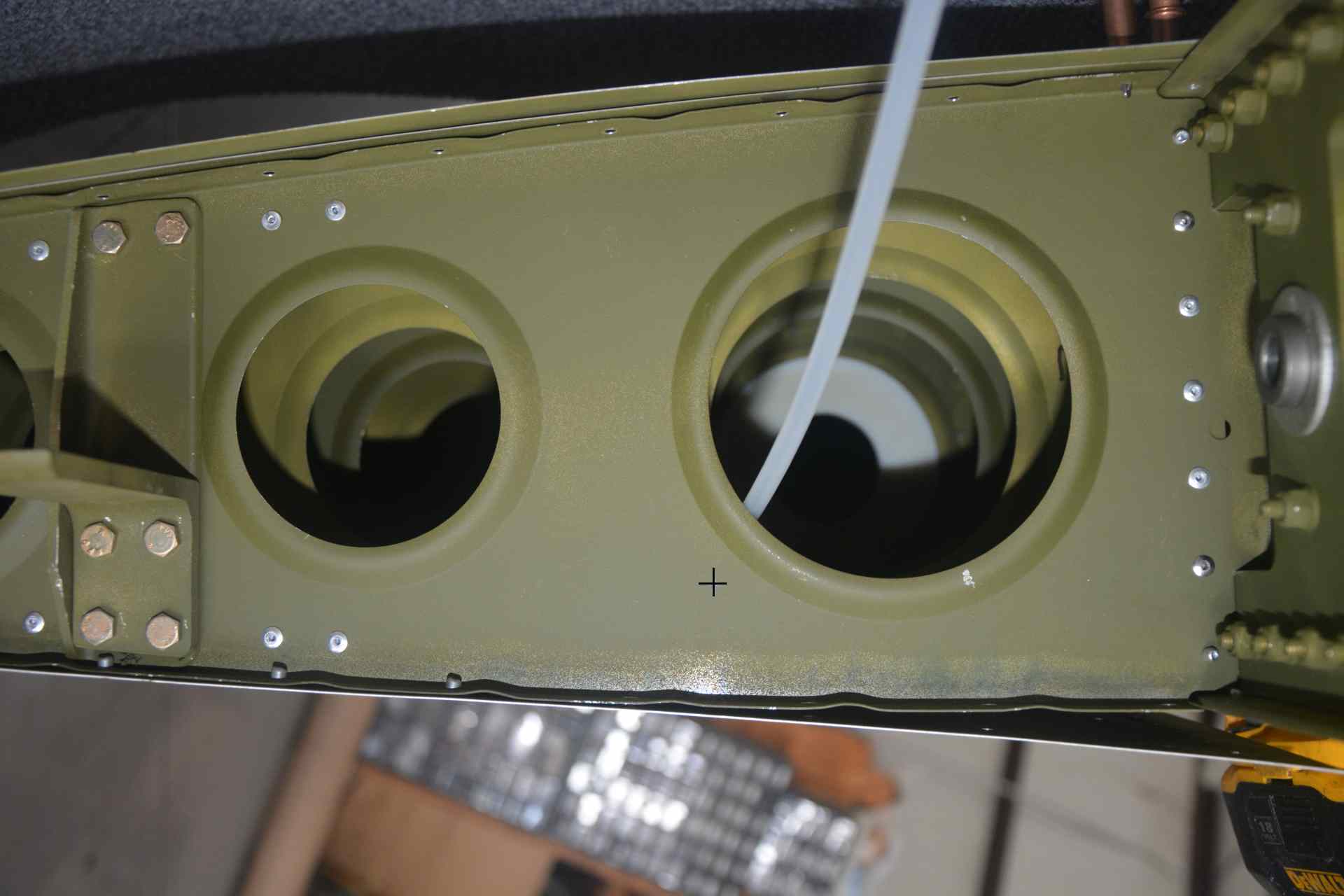

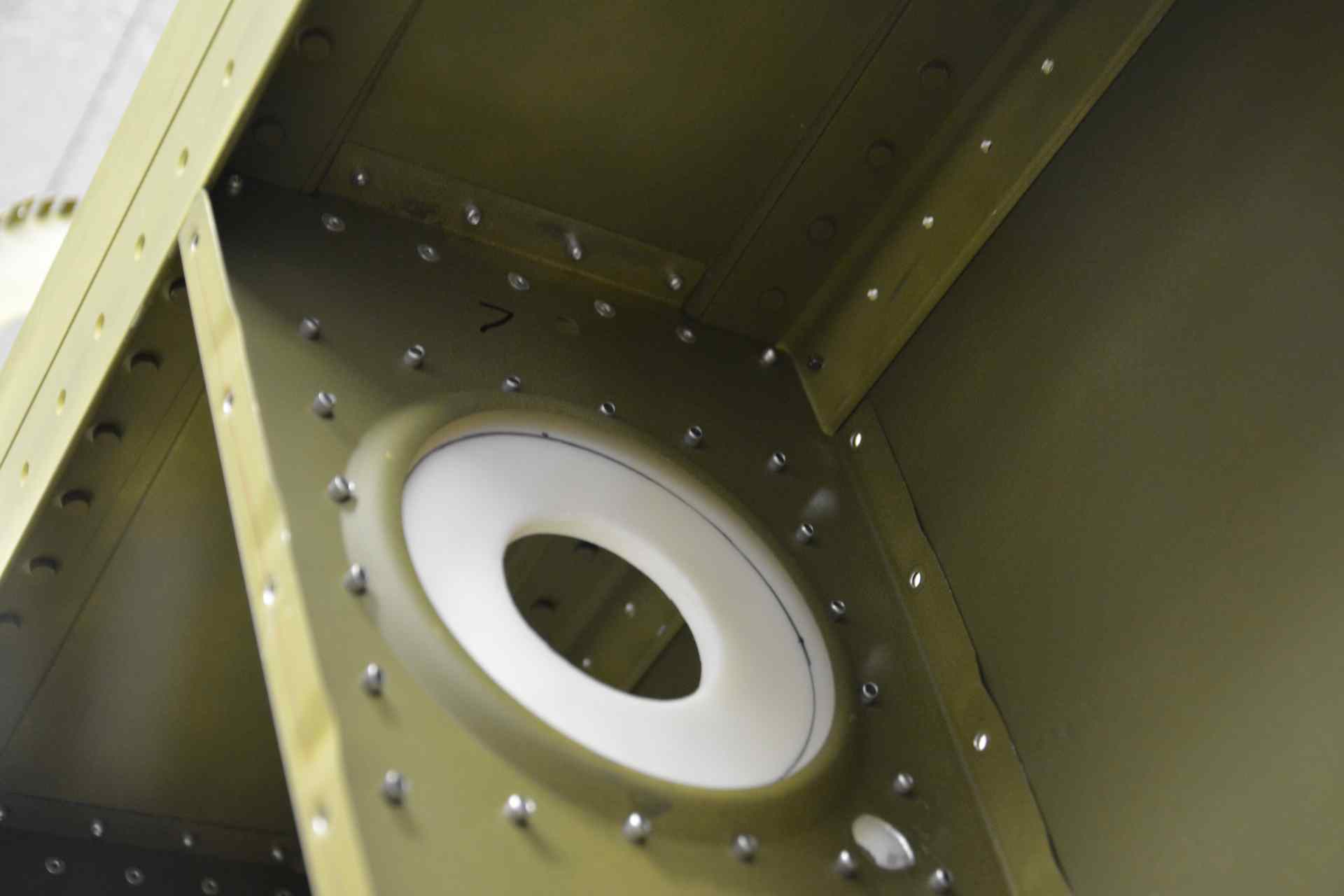

The most logical place to put the pitot tube is between main rib #8 and #9 on the left wing.  There is an access hole at this location which will allow access to connect the pitot tube.  This will require drilling a hole in each rib to run a ¼” plastic tube through to rib number 8.



THEATT~1_img8

THEATT~1_img9

THEATT~1_img10
