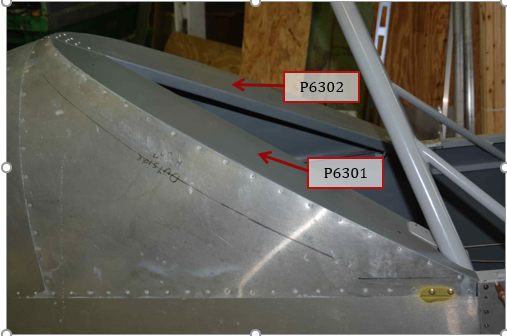

1. Position formers P6301 and P6302 in turtleback area. Formers should have been previously fitted and up drilled.
2. Install BSPS-42 rivets (9) to join formers.

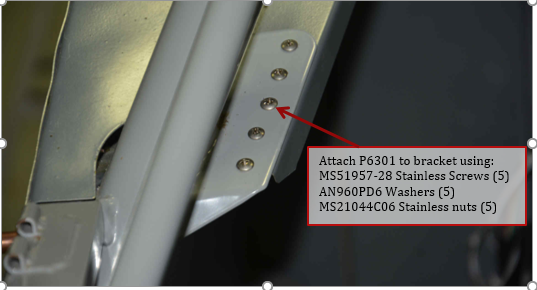

3. Attach P6301 to bracket on roll bar using #6 stainless steel screws MS51957-28, AN960PD6 washers and MS21044C06 stainless nuts.

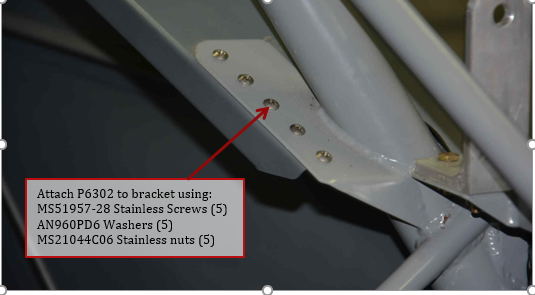

4. Attach P6302 to bracket on roll bar using #6 stainless steel screws MS51957-28, AN960PD6 washers and MS21044C06 stainless nuts.

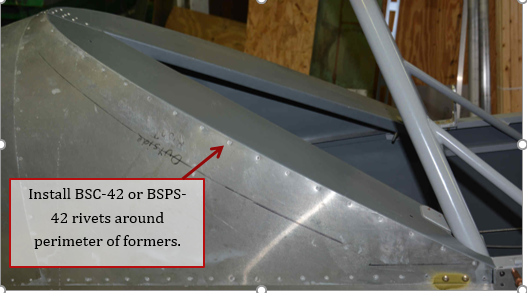

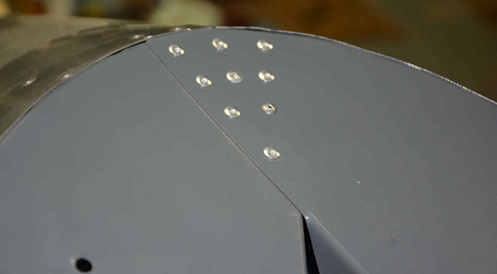

5. Install -42 rivets protruding or countersunk around perimeter of formers. Note: Flush rivets will allow a tighter fitting, easier to close canopy, as it will not have to slide over the rivet heads.
