Upper Wing Adjuster Holes

Scroll Prev Top Next More

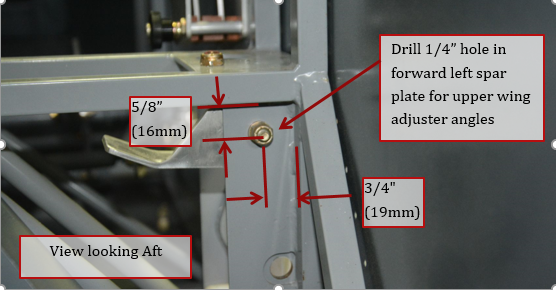

1.  Drill a 1/4” hole through the left forward spar plate for the upper wing adjuster bolt.  Wing adjusters will be installed after wing is first put in place.

Upperwing

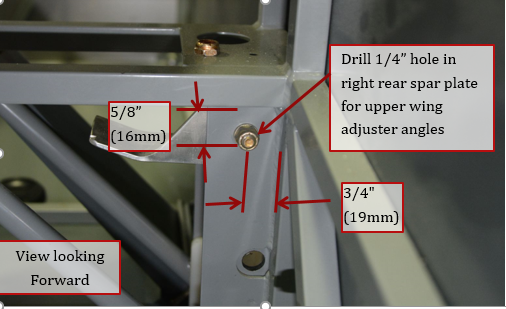

2.  Drill a 1/4” hole through the right rear spar plate for the upper wing adjuster bolt.  Wing adjusters will be installed after wing is first put in place.

Upperwing1
