Spar Layout Diagram
Here are some spar layout diagrams that were submitted by Glen Robinson Panther SN031 - Thank you Glen!

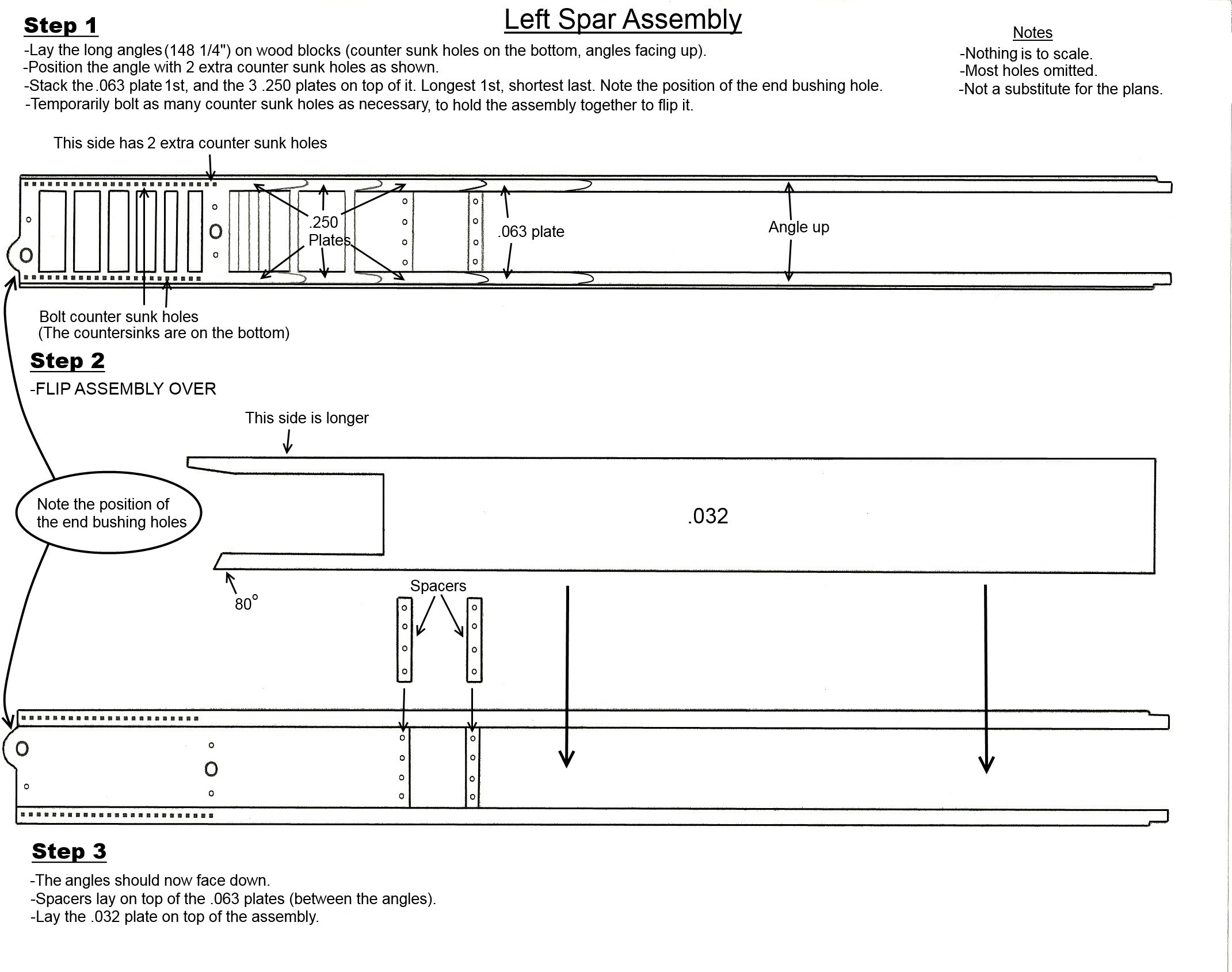

Left Spar Step 1-3

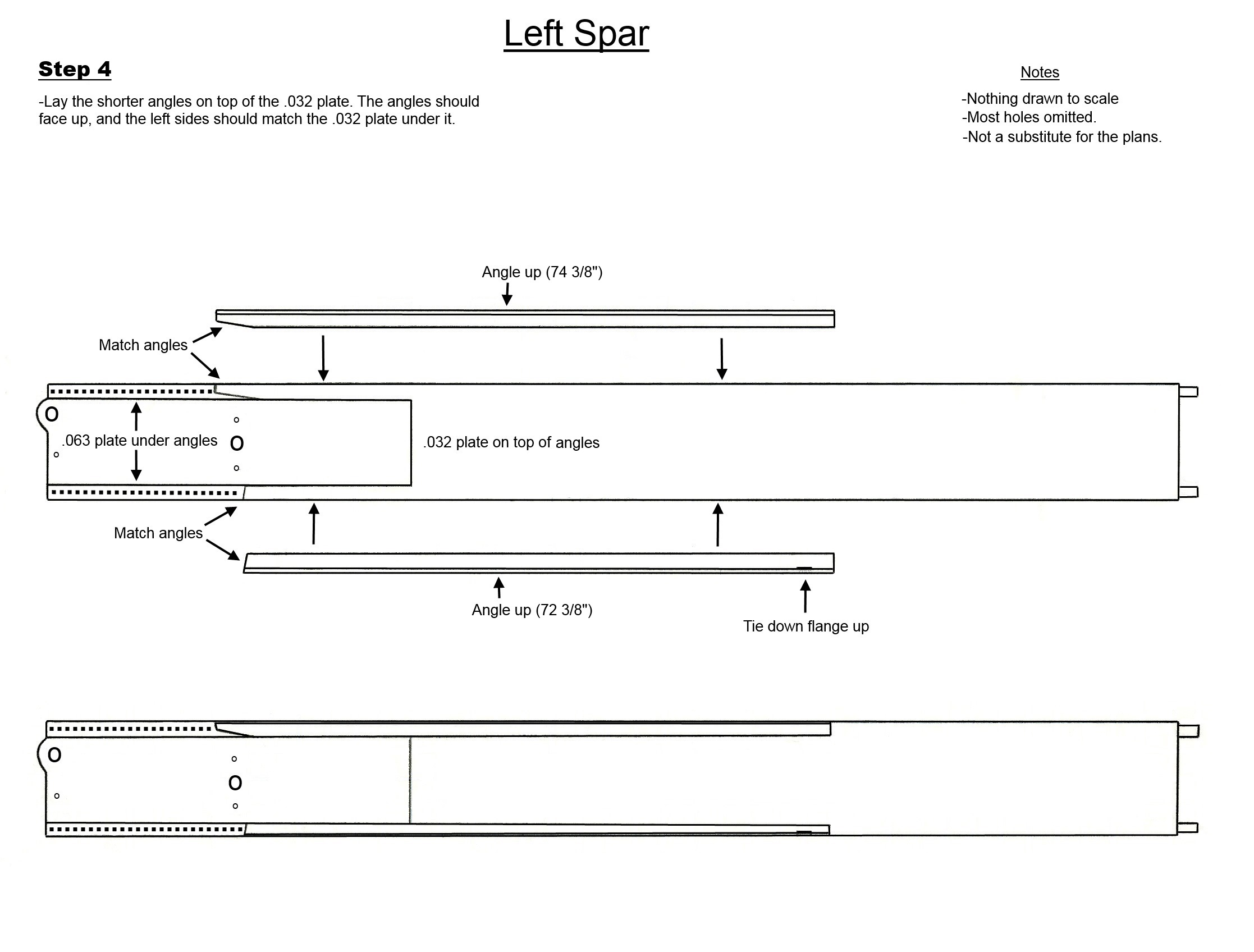

Left Spar Steps 4-5
Right Spar Steps 1-3

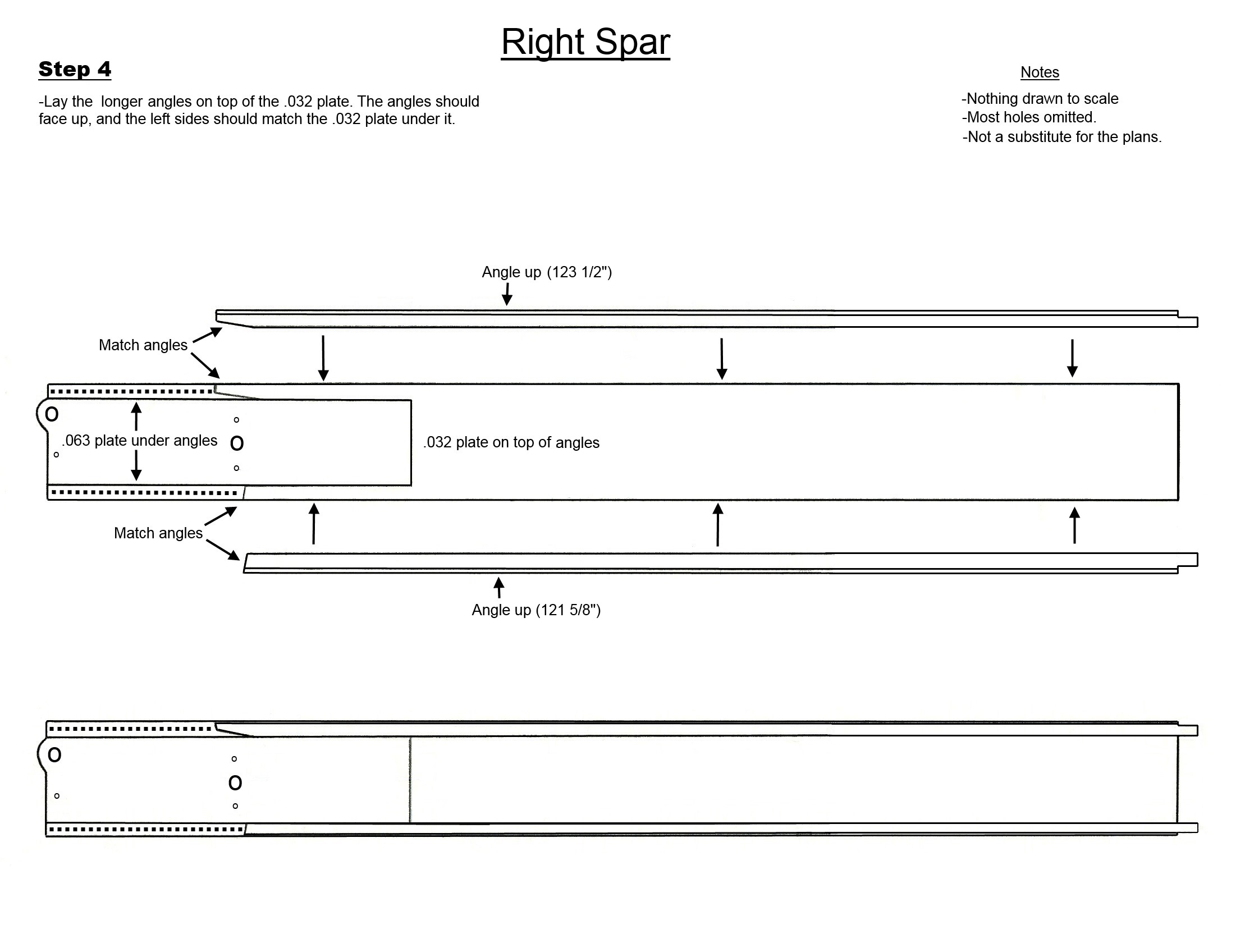

Right Spar Steps 4-5
